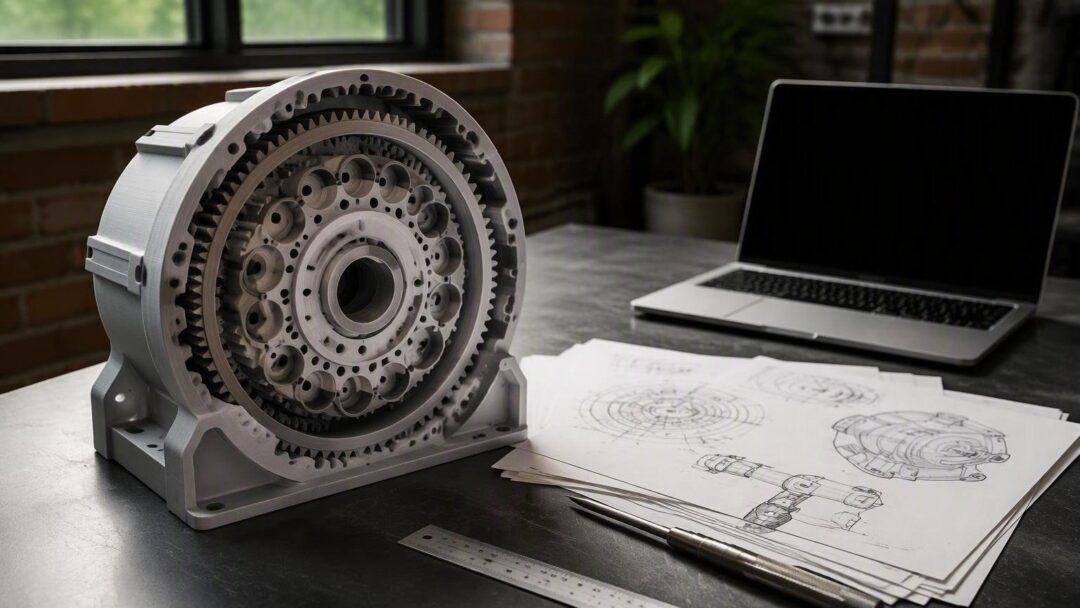

The world of mechanical engineering is witnessing a significant shift with the advent of 3D printed cycloidal gearboxes. These innovative designs promise high performance in a compact form, making them ideal for applications where size and weight are critical. The cycloidal gearbox stands out due to its ability to reduce high-speed input to a set ratio with minimal backlash, a feature that has captured the attention of hobbyists and engineers alike.
One notable example is the work by Advanced Hobby Lab which has been experimenting with 3D printed cycloidal gearbox designs tailored for NEMA 17 stepper motors. The primary objective was to evaluate the performance improvements over traditional planetary gearboxes. Initial tests revealed impressive results, including a 92% efficiency and reduced noise levels compared to 3D printed planetary gearboxes.
The Advantages of Cycloidal Gearboxes
Cycloidal gearboxes are renowned for their compact size and high torque capacity. They achieve this by using a unique mechanism where a cycloidal disc meshes with a ring of pins, resulting in smooth and efficient power transmission. This design is particularly beneficial for applications requiring precise control and minimal backlash, such as robotics and automation.
The efficiency of these gearboxes is a key factor in their popularity. The 92% efficiency reported by Advanced Hobby Lab is a testament to their potential. However, it is important to note that these results are achieved within the limitations of FDM 3D printing and with the inclusion of a few metal parts. This opens up opportunities for further optimization and improvement.
Comparing Cycloidal and Planetary Gearboxes
When comparing cycloidal gearboxes to traditional planetary gearboxes several factors come into play. Planetary gearboxes are known for their simplicity and wide range of applications. However, they often suffer from higher backlash and noise levels, which can be detrimental in precision applications.
In contrast, cycloidal gearboxes offer superior performance in terms of backlash and noise reduction. The design by Advanced Hobby Lab demonstrates this advantage, showcasing a smoother operation and lower noise profile. This makes them an attractive option for hobbyists and professionals seeking high-performance solutions.
Future Prospects and Innovations
The field of 3D printed gearboxes is rapidly evolving, with new designs and innovations emerging regularly. One such innovation is the dual-nested cycloidal design which promises even greater compactness, fewer parts, and smoother action. This design could further enhance the performance of 3D printed gearboxes, making them more accessible and versatile.
As 3D printing technology continues to advance, the potential for cycloidal gearboxes is vast. Engineers and hobbyists alike are exploring new materials and techniques to push the boundaries of what is possible. The future of gearbox design is bright, with 3D printing playing a pivotal role in this transformation.
